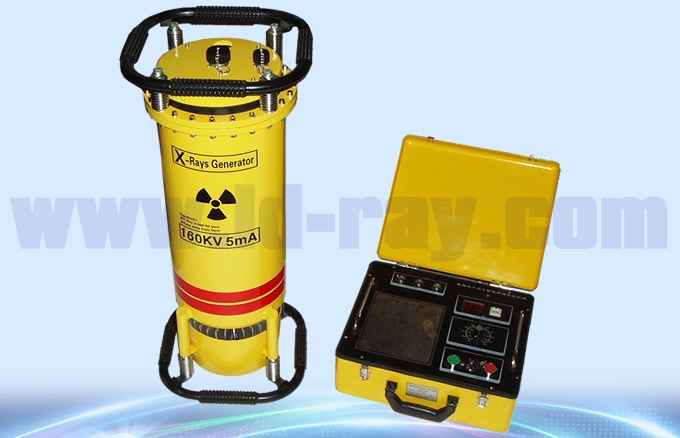

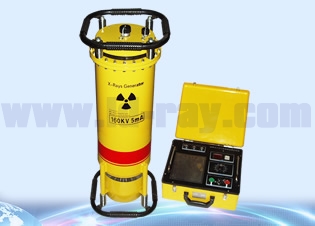

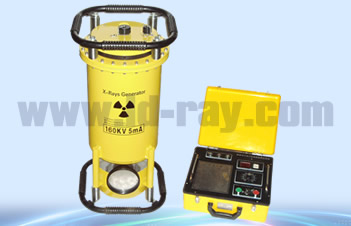

Portable frequency conversion gas-insulated X-ray machine
This model of unit uauslly with small volume X-ray generator, anode grounding, forced fan cooling, beautiful outlook, proper construction, light weight, convenient carrying, simple operation, and strictly works and rest according to 1:1mode, it can aging automatically, can check exposure parameters, also has high voltage on delaying function for assuring operator¡¯s safety.
Portable Gas-filling Series frequency conversion X-ray machine
A new generation of intelligental portable gas-filling series frewuency conversion X-ray machine which manufactured by Dandong Liaodong Radioactive Instrument Co.,Ltd is the most ideal NDT equipment that broadly used for national industrial, boiler, pressure vessel, ship-building, paper-making, petrochemical industrial, aviation, industrial mechnics and so on. Its volume is small, operation conveniently, works reliable, especially suit for all kinds of open works and can be works matches with power unit. Its control unit also can be cooperated with domestic&import detector.
Technical parameters for Directional portable X-ray machine(ripple ceramic X-ray tube)
|
Model |
Output voltage(KV) |
Input
(KW) |
Focus spot
(mm) |
Beam angle |
Max penetration
(mm) |
Weight(kg) |
dimension(mm) |
|
Generator |
Controller |
Generator |
Controller |
|
XXG-1605 |
80-160 |
1.5 |
0.8¡Á0.8 |
40£«5¡ã |
19 |
17 |
11 |
225¡Á225¡Á560 |
350¡Á290¡Á160 |
|
XXQ-1605 |
80-160 |
1.5 |
0.8¡Á0.8 |
40¡ã |
19 |
17 |
11 |
225¡Á225¡Á600 |
350¡Á290¡Á160 |
|
XXH-1605 |
80-160 |
1.5 |
1.0¡Á2.0 |
25£«5¡ã |
16 |
17 |
11 |
225¡Á225¡Á600 |
350¡Á290¡Á160 |
|
XXH-1605 |
80-160 |
1.5 |
1.0¡Á2.0 |
30£«5¡ã |
14 |
17 |
11 |
225¡Á225¡Á600 |
350¡Á290¡Á160 |
Remarks:
Q¡ªdirectional H¡ªpanoramic( flat target, cone target) G¡ªripple ceramic tube |
